Pool Rail “Snow P-shaped” (Baseplate Model)

• Material: Stainless steel (Grade 304 available); electrostatic powder coating provides protection against salt-chlorinated pools and coastal environments; available in “Snow” & other custom colors
• Configuration: P-shaped curve geometry with surface mounting

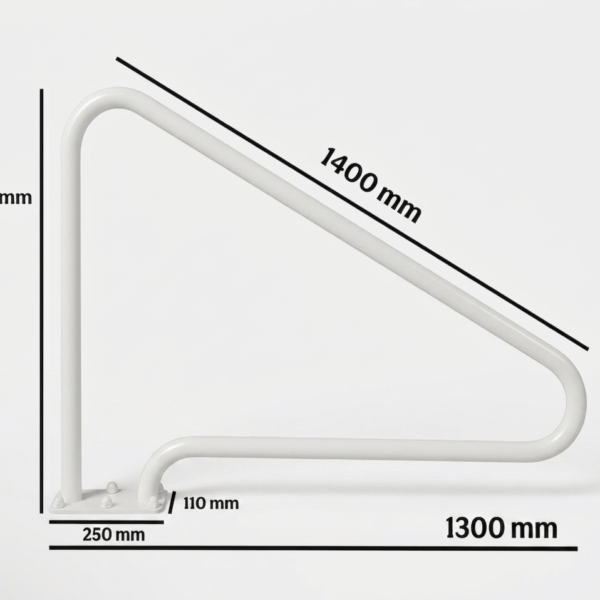

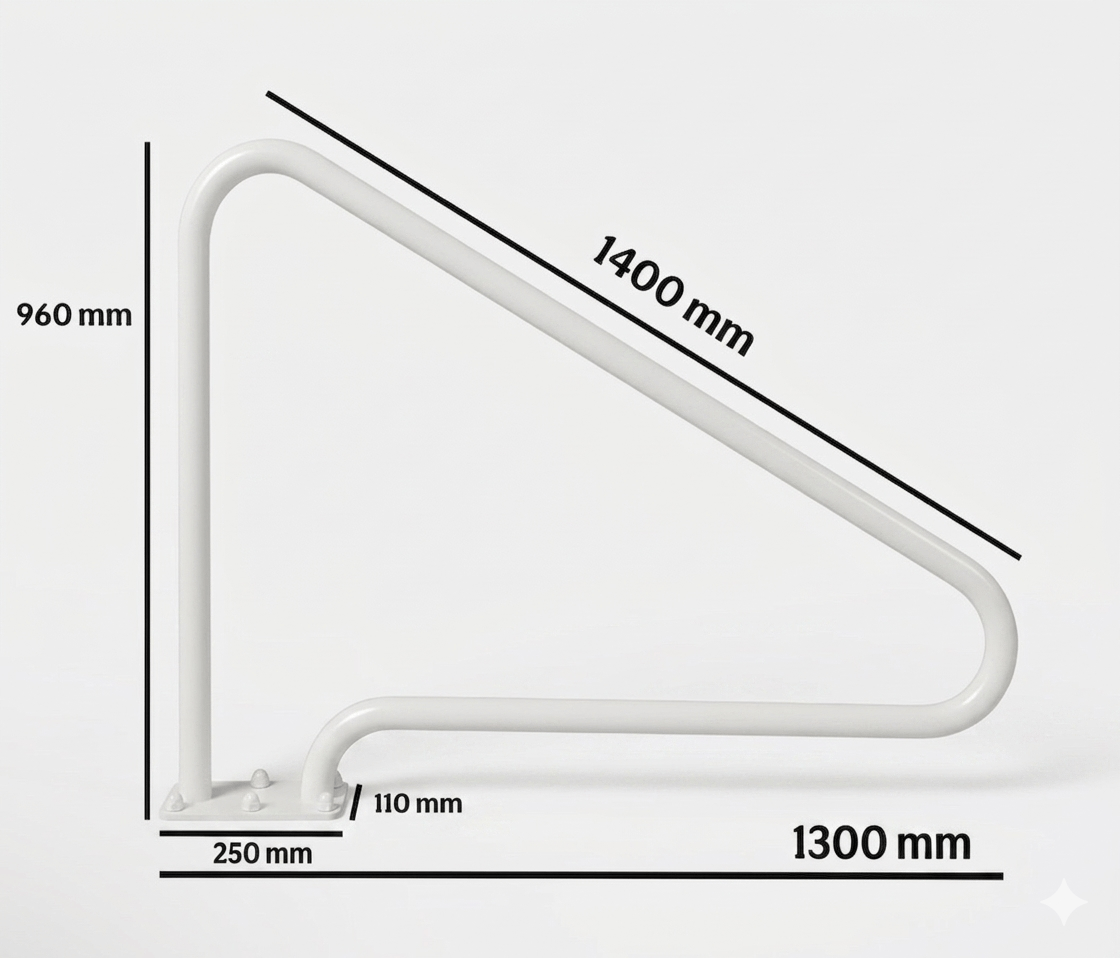

• Rail Dimensions: Length – 1300 mm; Span – 1400 mm; Height – 960 mm
• Baseplate Dimensions: Width – 110 mm; Length – 250 mm
• Specifications: Outside diameter 38.1 mm, wall thickness 1.6 mm
• Installation: Baseplate model allowing secure installation with chemical anchor, bolted down with stainless steel/galvanised threaded rods and secured with stainless steel dome nuts
• Production: Made in South Africa using locally sourced materials and skilled local labor
• Finish: Powder-coated in the “Snow” color; available in other custom colors or standard 180 grit brushed steel finish

Engineered for secure installation, corrosion resistance, and long-term performance, this model allows homeowners to install a secure handrail without the use of concrete/core drilling.
