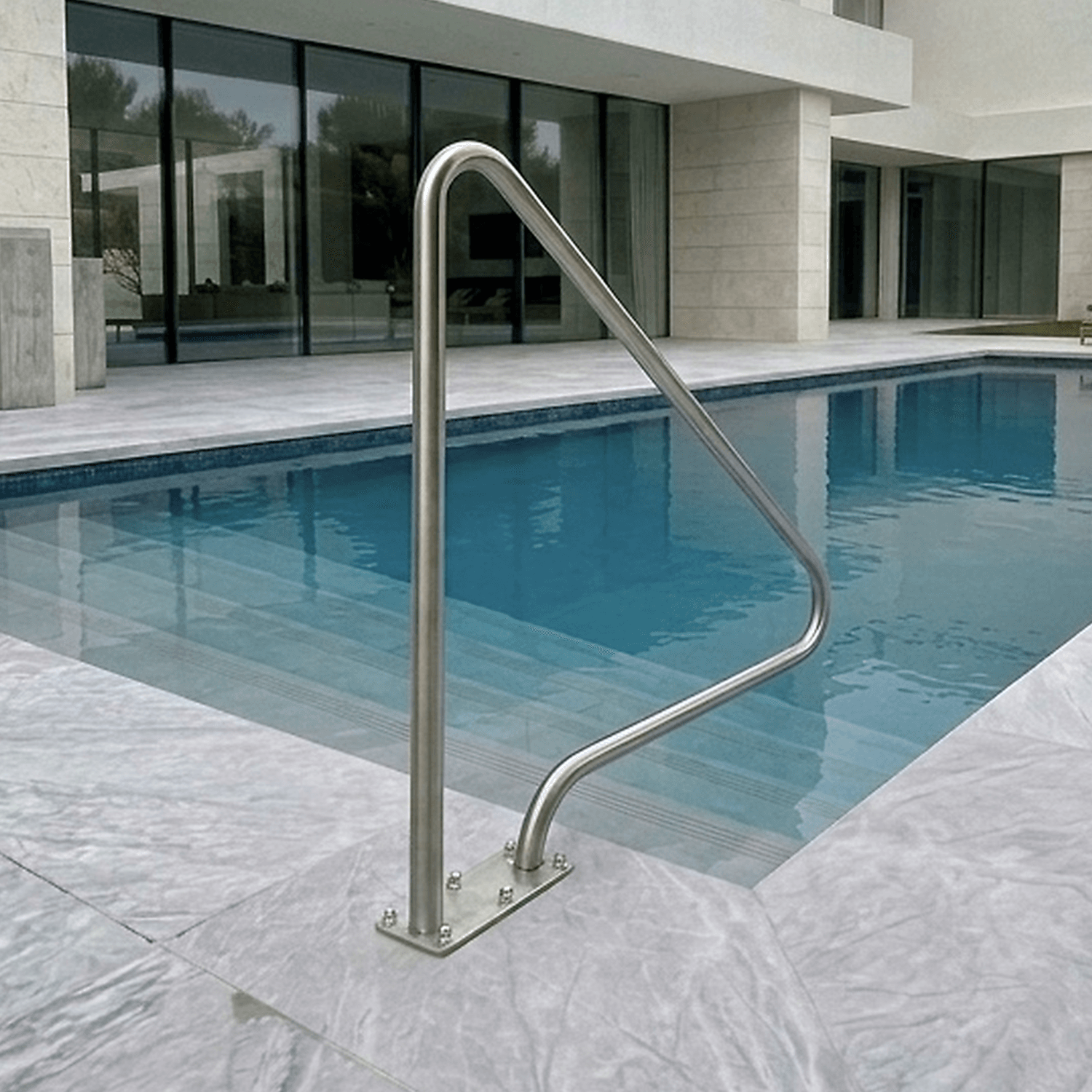

Pool Rail “P-shaped” (Baseplate Model)

Pool Rail featuring our P-shaped design, configured for surface-mounted baseplate installation.

• Material: Stainless steel, available in Grade 304 (inland, non-salt chlorinated pools) or Grade 316 (coastal, salt-chlorinated pools)

• Configuration: P-shaped curve geometry with surface mounting

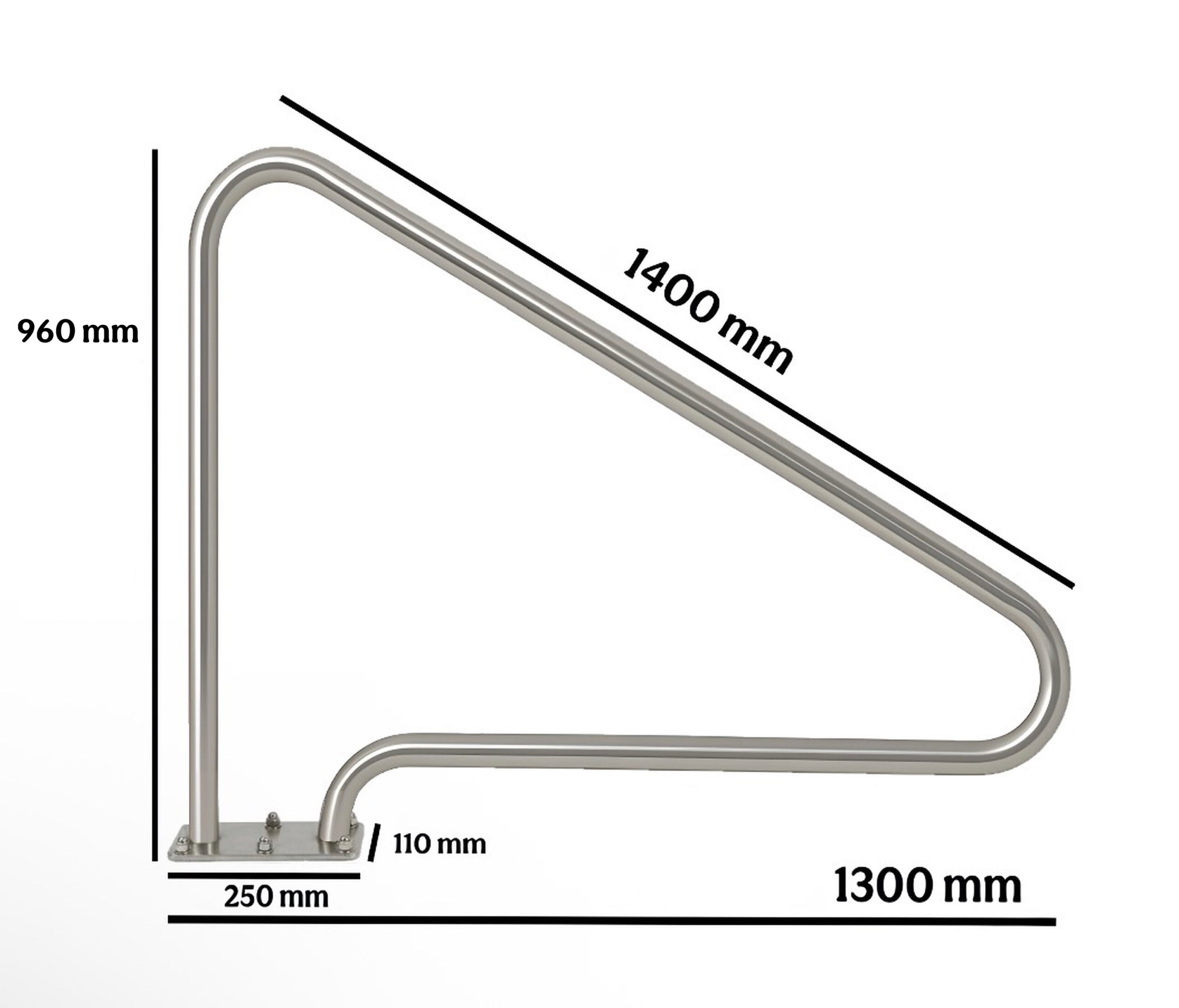

• Rail Dimensions: Length – 1300 mm; Span – 1400 mm; Height – 960 mm

• Baseplate Dimensions: Width – 110 mm; Length – 250 mm

• Specifications: Outside diameter 38.1 mm, wall thickness 1.5 mm

• Installation: Baseplate model allowing secure installation with chemical anchor, bolted down with stainless steel/galvanised threaded rods and secured with stainless steel dome nuts

• Production: Made in South Africa using locally sourced materials and skilled local labor

• Finish: 180 grit brushed

Engineered for secure installation, corrosion resistance, and long-term performance, this model allows homeowners to install a secure handrail without the use of concrete/core drilling.
